Our field team rolls out with a digital total station and hydraulic settlement gauges for every project in Boise Idaho. The Treasure Valley sits on deep alluvial deposits — layers of sand, gravel, and silt from the Boise River floodplain. We install surface monuments and tell-tale rods before a single shovelful of earth moves. Readings go straight into a real-time data logger, so we catch the first millimeter of movement. For sensitive structures, we combine these field measurements with a consolidation analysis to model primary and secondary settlement under the expected load.
A 5 mm differential settlement across a 10-meter span can crack a reinforced concrete slab if the clay layer is more than 3 meters thick.
Method and coverage
Regional considerations

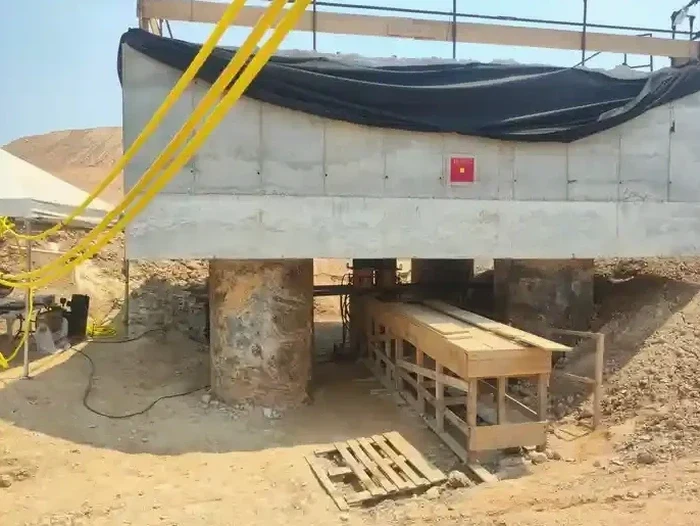

Boise sits in a moderate seismic zone (ASCE 7 Site Class D in many areas), but the real risk here is slow, unnoticed settlement. We have seen a 4-story apartment building on State Street show 40 mm of total settlement over two years because the geotechnical report only considered elastic settlement. The owner had to underpin the foundation with micropiles — a six-figure fix. Our settlement analysis always includes an estimate of time-rate of consolidation using local clay compressibility data from previous projects in the valley.
Standards that apply
ASTM D2435 (one-dimensional consolidation test), IBC 2021 Section 1803 (foundation investigation), ASCE 7-22 (serviceability load combinations)
Related services
Total and Differential Settlement Prediction
Finite element modeling using PLAXIS 2D to compute elastic and consolidation settlement for each footing. We calibrate the soil model with oedometer data from the site.
Time-Rate Consolidation Analysis
Calculation of primary consolidation duration using Cv from laboratory tests. We provide a settlement-versus-time curve so you can schedule slab pours and wall construction without risk.
Settlement Monitoring Plan
Installation of optical survey targets and settlement plates with weekly readings during construction. Data is compared to predicted values and reported in a dashboard.
Post-Construction Forensic Assessment
When cracks or misalignments appear, we re-level the structure and install tell-tales to measure ongoing movement. A forensic report identifies whether the cause is consolidation, creep, or a local defect.
Typical parameters
Top questions
How much does a settlement analysis cost in Boise Idaho?
For a typical single-family home site with 2 boreholes and oedometer testing, the analysis ranges between US$720 and US$1.690. Larger commercial projects with 6+ boreholes and FEA modeling run higher, depending on the number of load cases and soil layers.
What soil conditions in Boise Idaho cause the most settlement?
The silt and clay layers of the Boise River floodplain are the main culprit. These fine-grained soils have low permeability and high compressibility. We also see settlement in fill areas where organics were not properly removed before grading.
How long does the consolidation settlement take for a typical project?
For a 2-meter clay layer with Cv of 1.5 m²/yr, 90% primary consolidation takes about 2 to 3 years. We account for this in the construction schedule by recommending staged loading or prefabricated vertical drains when the owner needs faster stabilization.
Can you predict settlement for a deep foundation?
Yes. For piles or drilled shafts, we compute elastic shortening of the shaft plus settlement from soil deformation below the tip. The methodology follows AASHTO LRFD and IBC 2021, using load-transfer curves (t-z and q-z) from the site-specific soil profile.
